A nice and I think effective notification preview in Retro, with a verbatim sample text of a notification right below its name:

Not only you can see exactly what you’re going to get and make a much better-informed decision, but the app even uses actual names of your in-app contacts, so you can relate to the notifications more.

In iPhone’s accessibility settings you can choose the allowed speed of double- and triple-clicks on its side button (why is it important? we talked about it once), and the interface does something nice – after you make your choice, it shows the expected speed in the same place a sort of a preview:

To be honest with you, I was surprised that I liked it. This feels like it’d be a perfect example of cheapness, especially given the iPhone has this delightful animation that could be reused here:

But, I don’t know. Somehow, this one feels like it’d be too complicated. Maybe cheap is okay if one cannot think of a better “bespoke” interface?

Cheap here also has an added benefit of reusing existing patterns, which might feel nicer in the more utilitarian surroundings of settings.

But my favourite thing that elevated this was that with each visual blink there is also an accompanying haptic buzz. I think this is really clever. A haptic buzz is much “closer” to your fingers than onscreen blinking, and can help you feel the speed rather than just see it.

Unfortunately, the same clever preview is not present here in the otherwise very similar AirPods menu…

…and I also found myself wondering what would it take for it to make its way here as well:

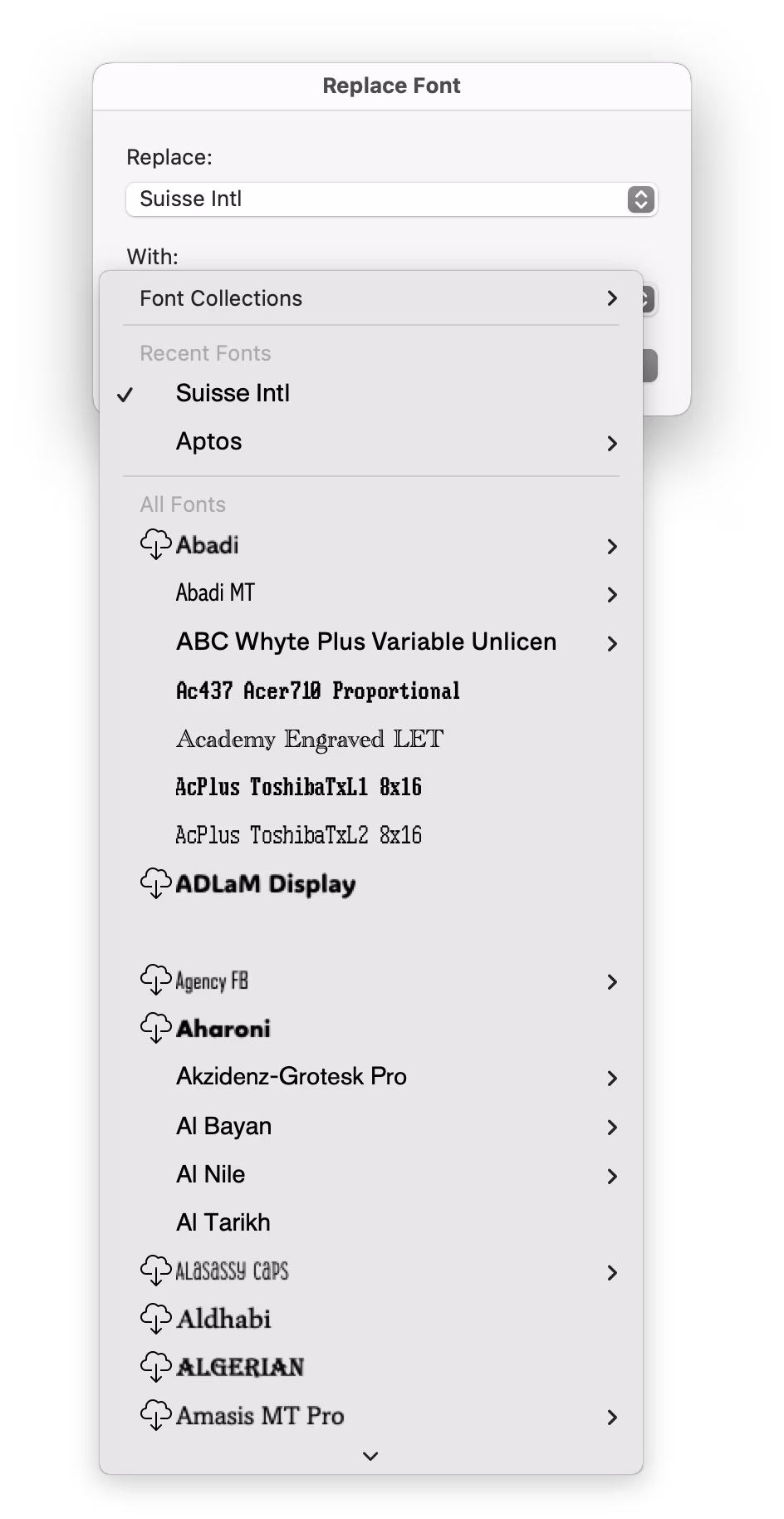

A reader sent me this screenshot from PowerPoint, with one of the menus looking the best it’s ever looked, and the other one showing to work with what we could charitably call “a UI hangover”:

It’s obviously bad craft and crossing over to the “embarrassing” territory, but I thought it’s an interesting question: what happened?

The main piece of the puzzle is that the first menu shows the name of the font in San Francisco, but the second asks to render the font name in itself, serving as a font preview.

Font previews are fascinating because they are the perfect showcase of how tricky fonts can be at scale.

Some time ago, I wrote an essay called Typography is impossible. TL; DR: It’s actually impossible to left align or center text. Ever. Not just because each font does whatever it wants – font size is a number that doesn’t really give you anything to hang a hat on, and the font can place itself in its box however it desires, too – and not just because fonts often lie (via bad metrics) about what they store inside, but also because aligning and centering are really in the eye of the license holder, and have more than one definition.

So, every time you align text to anything, in whatever way, it’s only an approximation. Most of the time that’s good enough. Here it is not.

I worked on font previews at Figma, and wanted to show you three screenshots of what we did.

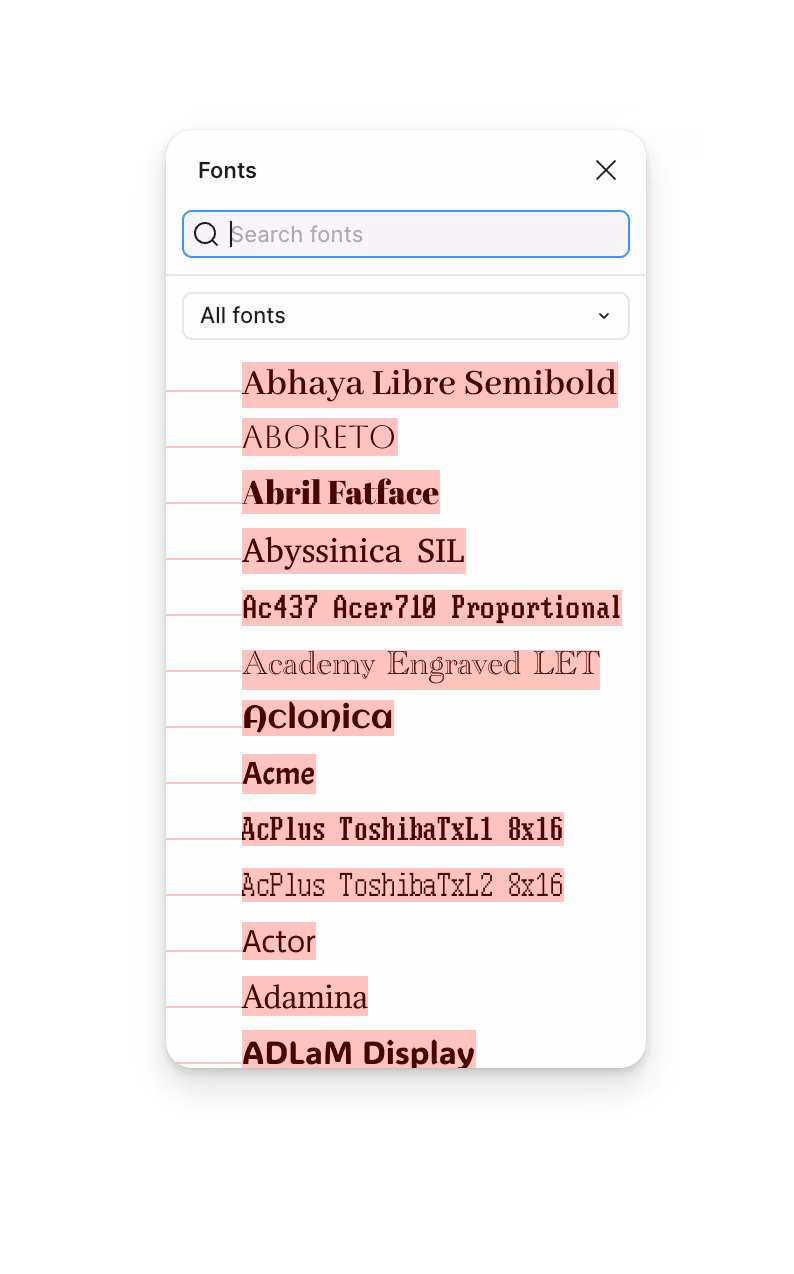

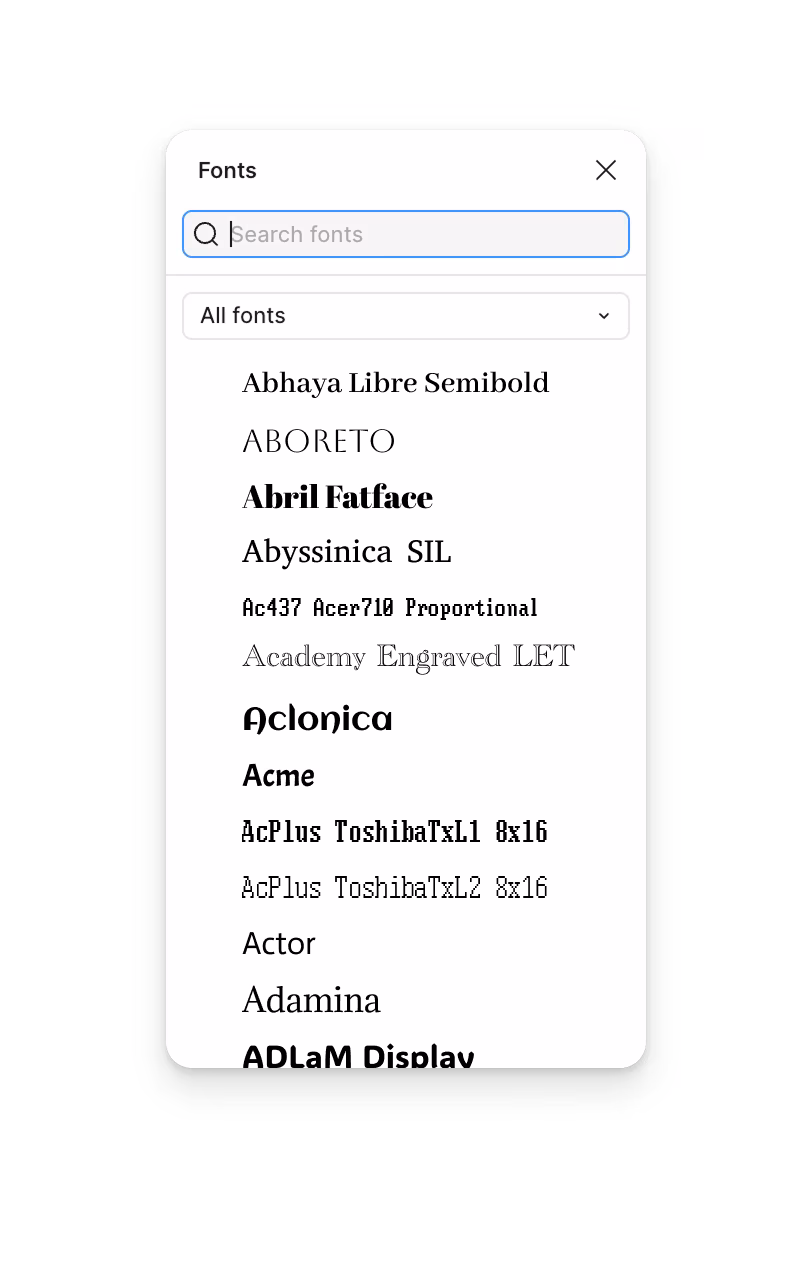

This first one shows the default attempt: we ask the fonts to render themselves in the same size (16px), vertically centered in a box that’s always 28px tall… and they oblige on paper, but it really doesn’t feel like they are:

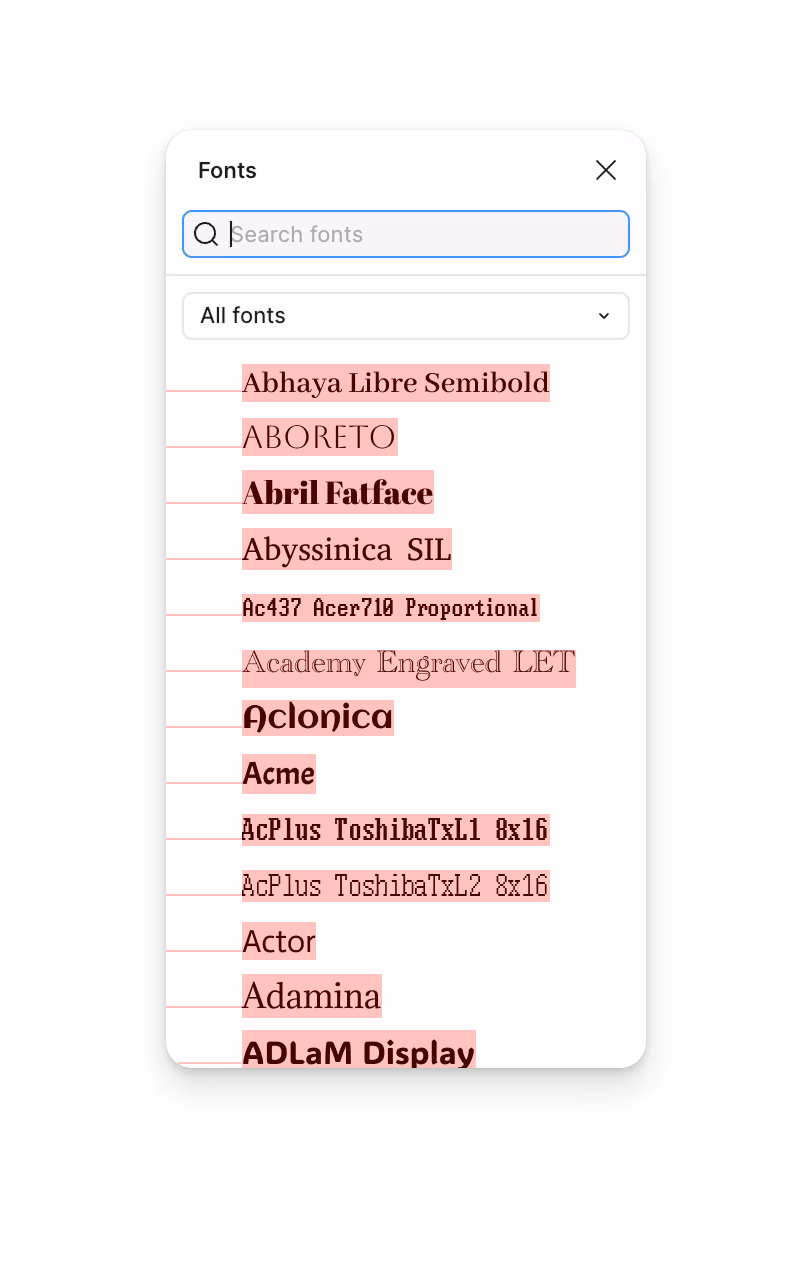

The second take shows what happens if you nudge the fonts up and down so they’re aligned to their baselines. This at least creates vertical rhythm; in effect, we need to make the fonts uneven to make them feel even.

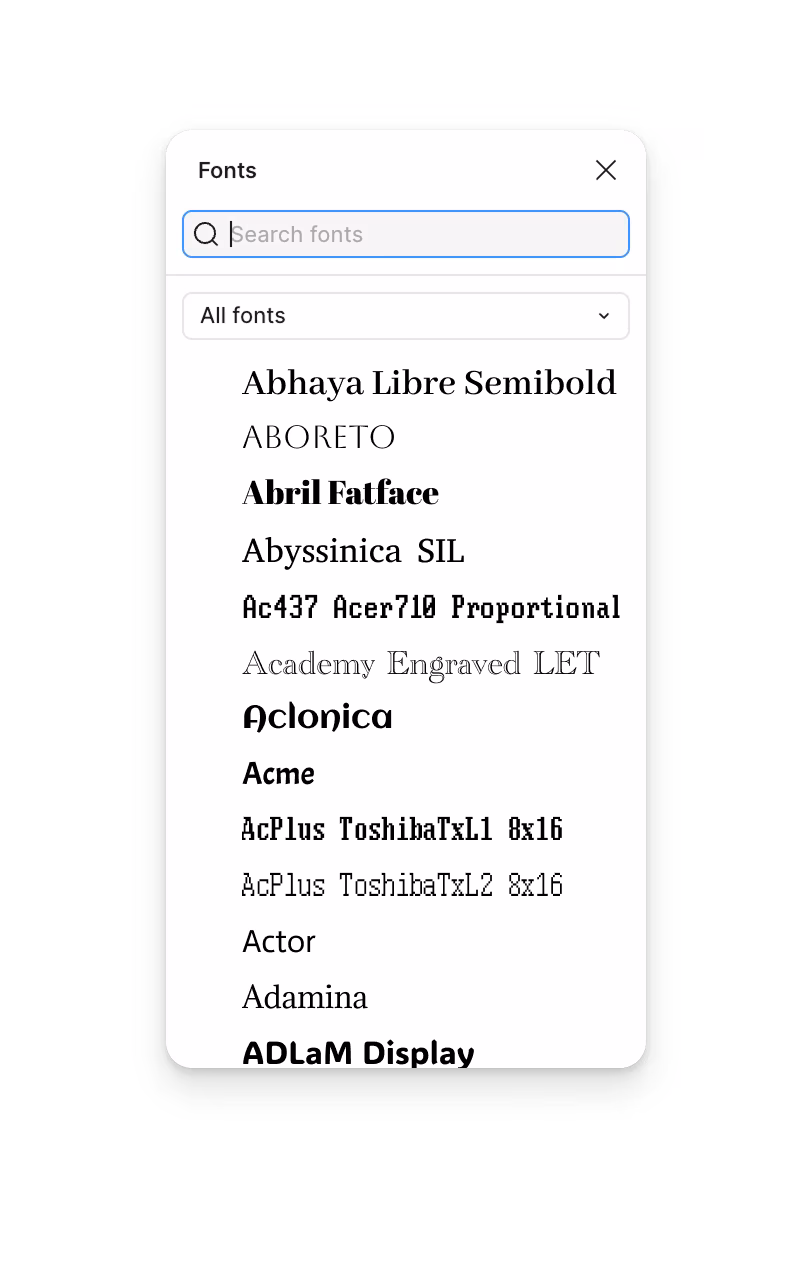

And this is the final result, with extra adjustments:

What do we do in the final version? Too many small things to mention, but in essence:

• We literally measure the fonts (programmatically) by rendering them and looking at them, and make adjustments. We blow them up (but not too much) if they’re optically too small, or reduce them (but not too much) if they’re too big.
• We have a multiplier for scripty fonts and monospace fonts, where the traditional measurements are likely to be off.
• We even special-case specific fonts by name. That feels like bad practice, but fonts are so varied and all over the place, that I think it’s perfectly fine to make exceptions for particular individual fonts that are popular or otherwise very important to your users.

These adjustments are all in the same category: getting off math balance to get to optical balance.

Here, you can compare before (the naïve version) with after (the final version):

If it feels subtle, imagine it applied to a much wilder menagerie of very thin, very huge, or very strange fonts. (The go-to example? Open a Mac and try typing in Zapfino.)

I’m not showing this to brag about my work – okay, fine, to some extent I am, we’re all human – and I truly believe this could be so much better, still. There are icon fonts, color fonts, and non-Western fonts so rich in variety and tradition that this category itself is basically a fractal.

Mostly, I wanted to share this lesson: dealing with fonts is hard, and dealing with fonts as a system even more so. Whether it’s the printing press, paper, or Illustrator, it takes people years or even decades to fully learn the craft of setting type, and to believe their eyes instead of only relying on math. But here, what’s needed is manufactured craft: we have to teach the machine to trust its eyes (which it doesn’t have) over math (which it can’t escape).

Now if you’re wondering why font previews look bad in so many apps, I believe it’s because people working on those did not allocate enough time to deal with all that.

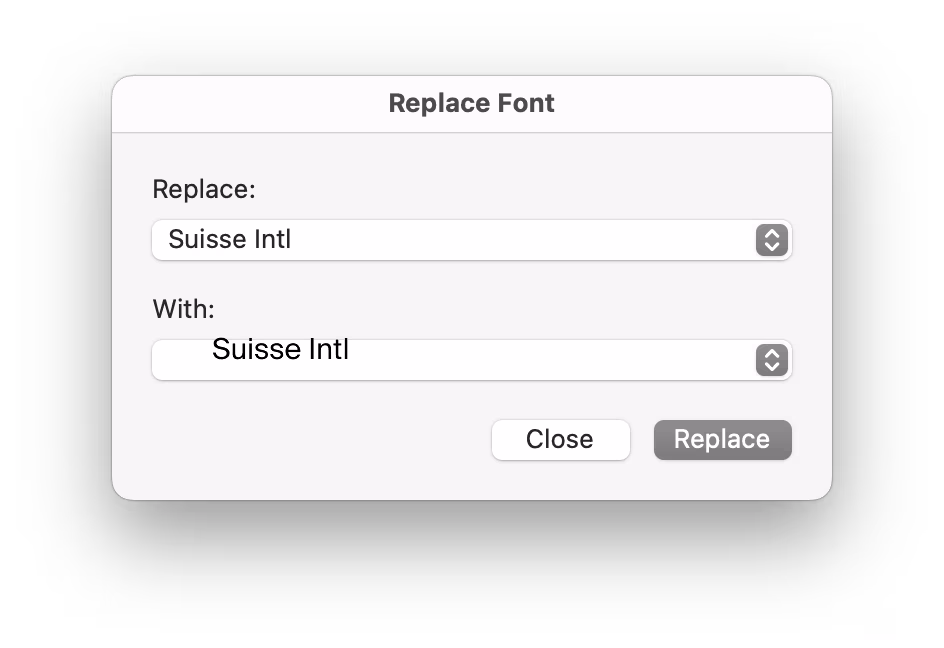

But I’ve used the word “embarrassing” as there’s one more thing that the original did poorly, and something the reader identified immediately. The makers of PowerPoint allowed the font to escape its containment:

This is another big lesson: fonts will ignore their bounds at every single opportunity. That infamous CSS IS AWESOME graphic? That’s CSS underestimating text. That naked URL or code snippet pushing the mobile site past the viewport and making it scroll? That’s the creators of the site not building up enough imagination of what fonts can do when they’re not watching. Zalgo text? A joke, but based in reality.

Fonts are so much more feral than you think. Are you ready for it?

Thank you to Giovanni Lanzani for sending in the original PowerPoint screenshots.

In his latest video, Shelby from Tech Tangents unpacked, installed, and put to use a truly forgotten product: IBM 3119, one of the first consumer flatbed scanners.

The setup was a small nightmare, needing a rare hardware card installed in a specific computer, an ultra-particular combination of two operating systems working in lockstep, and even some careful memory balancing.

Even after all that, a 300dpi page scanner in the late 1980s was still a force to be reckoned with. It’s hard to remember how enormous scanned files were compared to anything else then, even on a black-and-white scanner like this one. The video shows a simple 90-degree image rotation in highest quality requiring over 9 hours, and I believe it.

But deep inside the video, at precisely 19:31, for only ten seconds, something appears that is absolutely worth celebrating. The nascent scanner software has a “curves” feature that allows you to redraw the shades of gray to capture shadows, highlights, and midtones exactly how you want them. Today, the feature would look something like this, with a real-time preview:

There would be absolutely no way to do something like this in the late 1980s, when just rotating an image is an overnight operation, right? And yet:

How was this accomplished? Absolutely brilliantly. Remember the palette swapping technique? Here, the entire screen’s palette is 256 shades of gray. It’s a very particular kind of a linear palette, and so you can easily take that line and… well, turn it into a curve. Since palette swapping happens on the graphic card, it takes as little as one frame of time, allowing for it to react to mouse movements as they happen.

This must have been mind blowing to experience in the moment. Sure, it’s only a preview, and actually applying curves to the image would take many minut—

No. This is a wrong frame of mind. Here’s my hot take: There are moments in software where the preview is more important than the feature following it. That’s because the preview making things faster isn’t just the difference between finishing something sooner or later. It’s a difference of doing something or not doing it at all. Would you even attempt to use curves if each adjustment took minutes or hours, especially in a land without undo?

I love this preview that hints at what the future will be. I like this clever use of extremely limited technology and tight collaboration between engineering and design. It must have been nice to be in the room whenever someone had the flash of insight to use palette swapping this way.

This is a nice way iOS Safari behaves the moment you tap one of the font size buttons – it immediately ejects all the other chrome:

After Liquid Glass specifically, we seem to be going through an interesting re-evaluation of whether “the content is the king; it should feel expansive and UI should get out of the way at all costs,” so seductive as a principle, is ultimately the right approach. Liquid Glass-sporting operating systems have so many contrast and blending and distraction issues that I wonder if they alone are radicalizing people, making them appreciate traditional rigid toolbars with solid backgrounds and fortified borders.

But here? Here letting contents shine and putting the UI atop feels like the absolutely right thing to do, since you are redesigning your reading experience.

Contrast this with Books:

It’s not even that the crossfaded transitions feel awkward. It’s mostly that the interface takes up so much room that the content preview slice becomes almost claustrophobic. And it’s even weirder when you tap the Customize button, and whatever was visible gets inexplicably replaced by a pop-up with… largely the same content anyway.

How will the entire page feel? For that you have to use your imagination – or keep tapping back and forth.

I linked to Strudel before, but this 6-minute video is even better – it shows a musician named Switch Angel constructing a trance track from scratch:

This is of course competence porn, made even better by the dry Polish lektor-like delivery. But it’s also a puzzle. I watched this so many times. There are so many great UI lessons in here:

• You can absolutely put graphics inside a textbox
• Sparklines rule
• Slider is still the best UI element in history
• Previews don’t have to feel like training wheels
• Synchronizing sounds to visuals is so powerful (see: turn signals on a car dashboard)

I found myself thinking about how you’d design something that feels real-time, but also needs to be resilient against typos, and has a distinct “commit” moment (which is what I think those yellow flashes are); some of the best moments in the video are the quick fixes that aren’t narrated.

Ultimately, this also shows how powerful and underrated plain text can be as interface. It’s a bit like designing straight in CSS, operating at the weird intersection of motor memory, creativity, and abstraction. (Is there a CSS editor that feels more like this?)

On top of all of this, the act of building the track this way is also how the finished track would sound like. Amazing stuff.

Remember all these jokes that went like this?

[God looking at a pug dog for the first time] What the hell did you humans do with my bad ass wolf I gave you?

Imagine sitting the creators of the typewriter in front of YouTube and having them watch this video.
